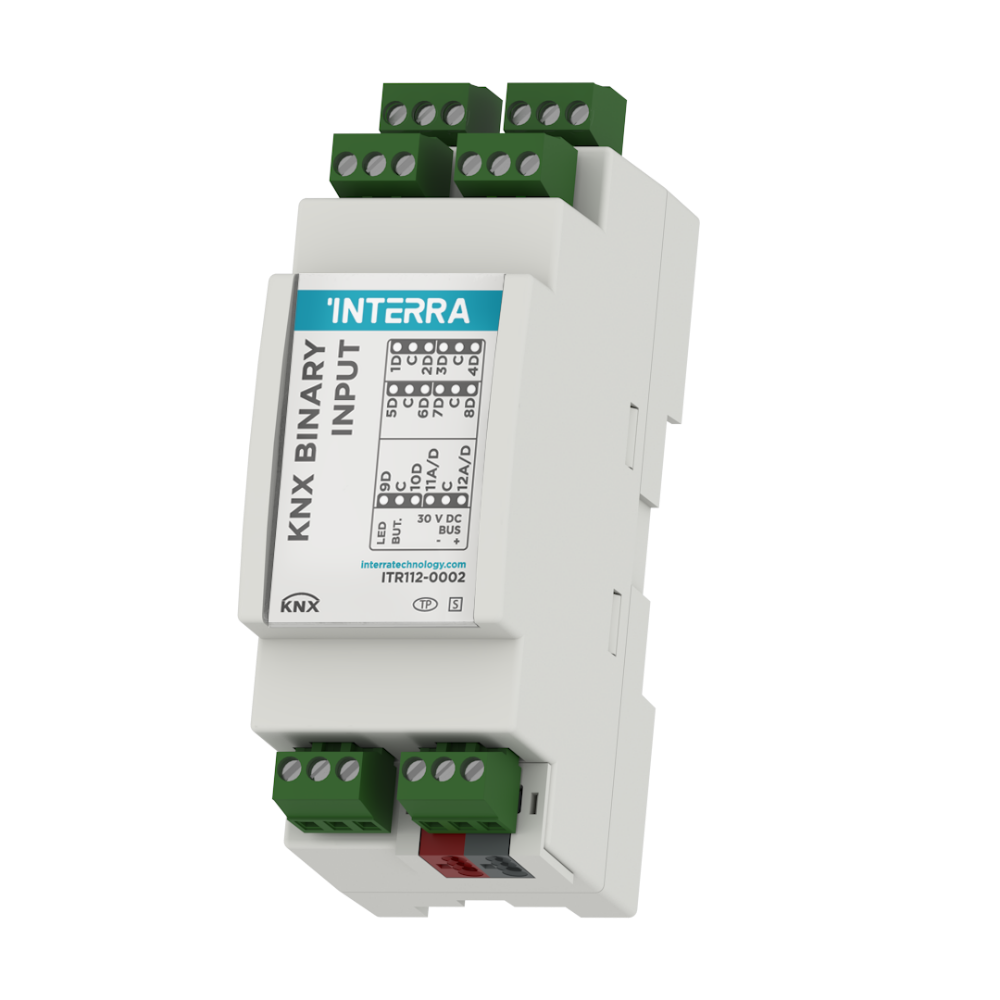

12 Channel KNX Binary Input Module

KNX Binary Input is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices. X binary/analog inputs configurable as a temperature probe. Each analog input can be used by 2 thermostat channels.

CONFIGURATION AND FEATURES: The complete configuration of the device is performed via ETS5 or higher. Depending on ETS configuration and settings, the product feature will be different. Available functions are:

Input Functions

• Thermostat Function

• Switch Sensor

• Switch / Dimming Sensor

• Shutter Sensor

• Value / Forced Operatio

 • Control Scene

• RGB Colour Control

• RGBW Control

• Mode Selection

• Command Sequence

• Counter

 Logic Functions

 Internal Inputs:

• 6 binary input

External Inputs:

 Binary Value (adj. size) (max. 3 selectable)

• Movement

• Temperature

• Brightness

Output Types (max. 5 selectable):

• Switch

• Absolute Dim

• Shutter

• Alarm

• Sequence

• Scene Number

• String

• Threshold
