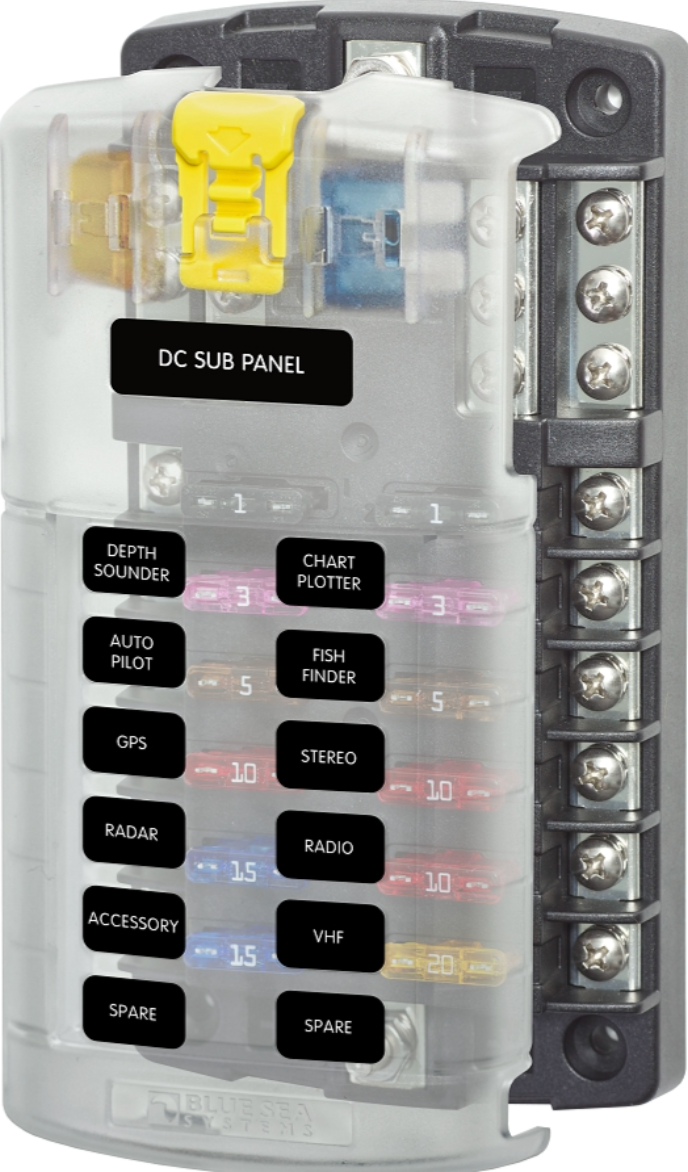

Blue Sea 5026 ST Blade Fuse Block with 12 Circuits
Blue Sea 5026 ST Blade Fuse Block with 12 Circuits
Regular price
$78.66 USD
Regular price
Sale price
$78.66 USD
Quantity
Couldn't load pickup availability
12 circuit fuse block for blade style automotive fuses. Included negative bus bar.
p/n: BSS-0005026
This 12 gang fuse-block is for automotive style ATO/ATC blade fuses from 1 Amp to 30 Amps and is designed to withstand the corrosive and vibration prone environments of boats, automobiles or RV's. Made in the USA from marine grade materials, the 5026 Fuse Block comes with a ground bus and snap-on cover.
- Clear insulating cover with label recesses accept Small Format Labels (not included) or write on labels (included)
- Polycarbonate cover Satisfies ABYC/USCG requirements for insulation and contains storage for two spare fuses
- One sample fuse is included, you have to purchase others separately
- We suggest you order a set of our EasyID fuses that light up when blown
- Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit
- Screw terminals have captive lock washers for maximum vibration resistance
- Accepts ATO and ATC fast acting automotive style blade fuses
- Rated up to 32 volts DC, 30 Amps per circuit, 100 amps total per block
- Overall height 6.472" Overall width 3.315" Overall depth 1.518"
