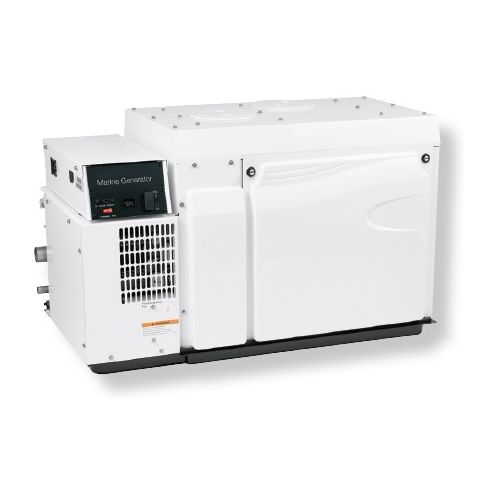

Cummins Onan Marine QD 17kW Generator, 60Hz, 12V Start – 17MDKDP

The Cummins Onan Marine QD 17MDKDP is a 17kW diesel marine generator designed to provide dependable onboard electrical power. It features a four-cylinder, four-stroke, water-cooled Kubota marine diesel engine, electronic frequency control, and advanced diagnostics for monitoring the engine and alternator.

The optimized mounting system helps reduce vibration, while the Onan digital control system provides operating information and diagnostic protection. This unit operates at 60Hz and 1,800 RPM and is configured with a 12V DC starting system.

• Rated Output: 17kW
• Frequency: 60Hz
• Engine: Four-cylinder, four-stroke Kubota marine diesel
• Cooling: Water cooled
• Speed: 1,800 RPM
• Alternator: Onan brushless, four-pole
• Starting System: 12V DC
• Fuel: Diesel
• Dimensions: 44.4" L × 23.7" W × 27.5" H (housed)
• Weight: Approx. 930 lb (housed)
• Emissions: EPA Tier 3
• Communications: SAE J1939 CAN data link
• Warranty: Five-year limited coverage, subject to Cummins terms
