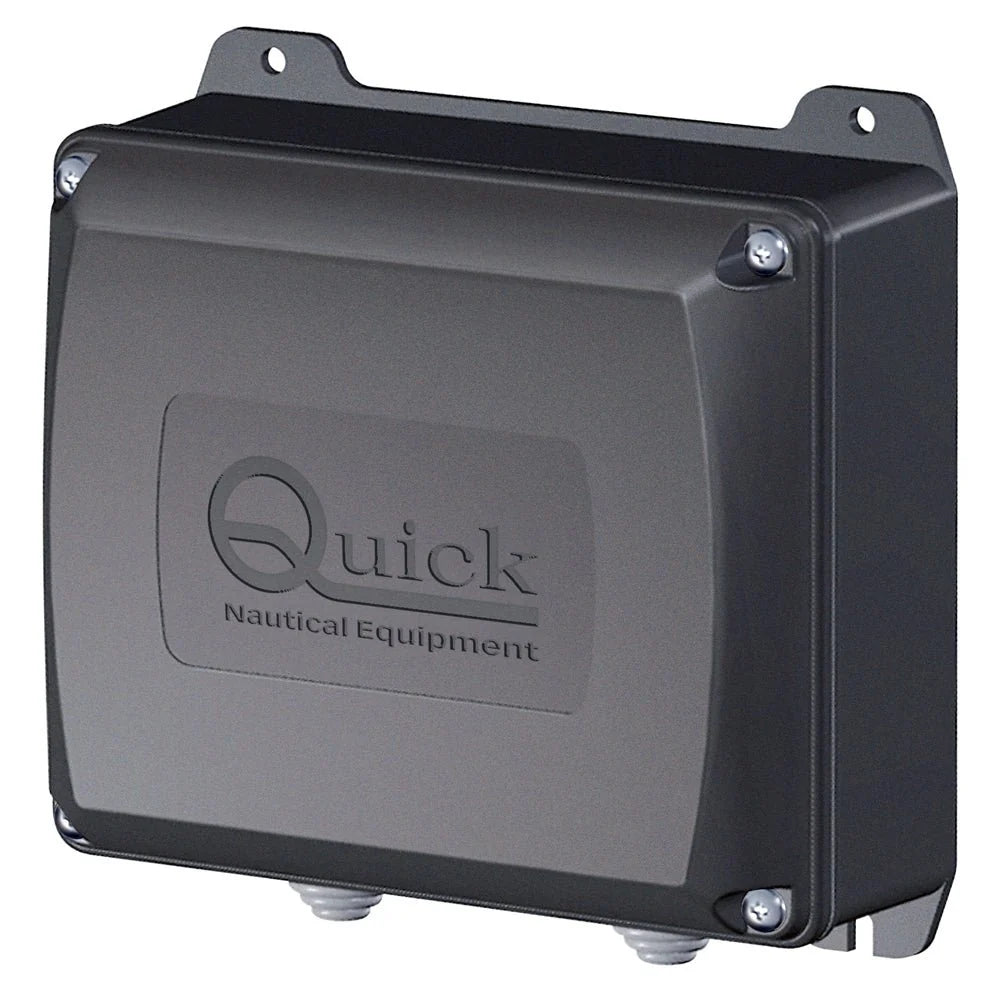

Quick RRC R904 4-Relay Radio Remote Control Receiver, 913 MHz

Quick RRC R904 marine radio remote-control receiver with four relays and a 913 MHz carrier frequency. It is designed to receive commands from compatible Quick RRC transmitters and operate onboard electrical equipment.

The receiver supports a wide 10.5V to 31V DC power range and can store up to 50 transmitters.

Key features:

• Four-relay receiver
• 913 MHz FSK radio frequency
• Input range: 10.5V to 31V DC
• Relay current capacity: 15A
• Standby current: 25mA
• Operating temperature: -15°C to 70°C
• Stores up to 50 transmitters
• LED and seven-segment status display
• Reverse-polarity protection
• Low-battery protection
• Programmable digital filter
